Series CG

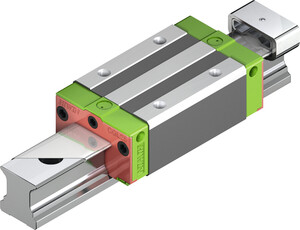

Standard series in O-arrangement, optionally with cover strip, for all revised mounting surfaces. The CG ball bearing guide is particularly suitable for single-axis applications due to its high moment load capacity. The available cover strip minimises the installation effort required to close the mounting holes. The optimised lubrication concept also makes the CG series the first choice for short-stroke applications in particular. You can find the right block under the accessories for the respective profile rail or directly under the menu item Blocks. Alternatively, you can configure your CG linear guideway directly in our product configurator. CAD data and technical drawings are also available for download here.
31 product(s)
Type
H
W
L
Cdyn
C0
H1

N

B

B1

C

C1

L1

K2

G

M

l

T

T1

H2

H3

Mass

M0X

M0Y

M0Z

CGH15CA
28 34 58,2 14700 23470
CGH20CA
30 44 74,9 27100 36680
CGH20HA
30 44 90,9 32700 47960
CGH25CA
40 48 84 34900 52820
CGH25HA
40 48 101,4 42200 69070
CGH30CA
45 60 97,4 48500 71870
CGH30HA
45 60 119,9 58600 93990
CGH35CA
55 70 111,4 64600 93990
CGH35HA
55 70 135,8 77900 122770
CGH45CA
70 86 137,6 103800 146710
CGH45HA
70 86 174 125300 191850
CGL15CA
24 34 58,2 14700 23470
CGL25CA
36 48 84 34900 52820
CGL25HA
36 48 101,4 42200 69070
CGL30CA
42 60 97,4 48500 71870
CGL30HA
42 60 119,9 58600 93990
CGL35CA
48 70 111,4 64600 93990
CGL35HA
48 70 135,8 77900 122770
CGL45CA
60 86 137,6 103800 146710
CGL45HA
60 86 174 125300 191850
CGW15CC
24 47 58,2 14700 23470
CGW20CC
30 63 74,9 27100 36680
CGW20HC
30 63 90,9 32700 47960
CGW25CC
36 70 84 34900 52820
CGW25HC
36 70 101,4 42200 69070
CGW30CC
42 90 97,4 48500 71870
CGW30HC
42 90 119,9 58600 93990
CGW35CC
48 100 111,4 64600 93990
CGW35HC
48 100 135,8 77900 122770
CGW45CC
60 120 137,6 103800 146710
CGW45HC
60 120 174 125300 191850
